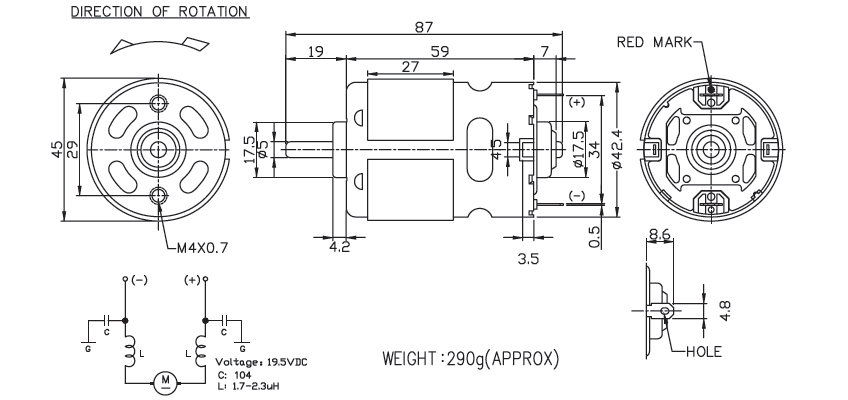

755Brush DC Motor /Round Type
Application： Portable Power Tool 、Photocopier 、Massager
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

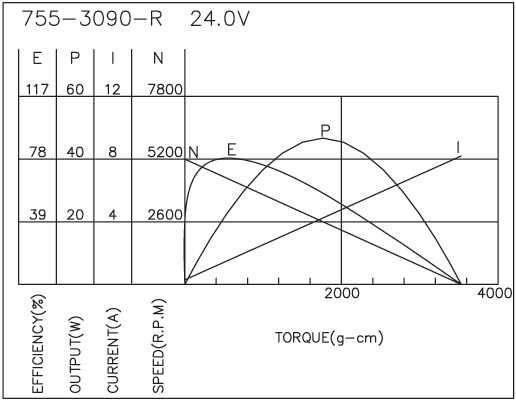

| 755-3090-R | 18.0-36.0 | 24.0V CONSTANT | 5200 | 0.30 | 4715 | 0.94 | 363 | 35.59 | 17.58 | 78.63 | 8.20 | 3530 | 346.08 |

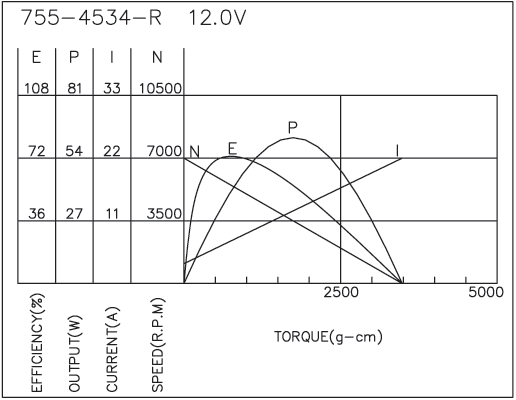

| 755-4534-R | 9.6-18.0 | 12.0V CONSTANT | 7000 | 1.20 | 5862 | 5.08 | 699 | 68.53 | 42.08 | 72 | 22.66 | 3483 | 341.47 |
| 755-9510-R | 7.2-10.8 | 10.8V CONSTANT | 23000 | 3.80 | 18868 | 26.52 | 1112 | 109.02 | 215.47 | 76 | 125.82 | 6418 | 629.22 |

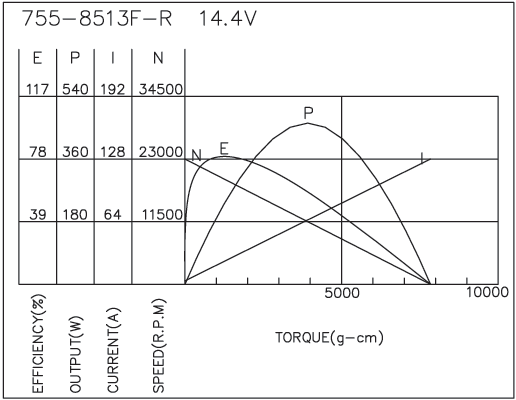

| 755-8513F-R | 7.2-14.4 | 14.4V CONSTANT | 23000 | 3.60 | 20367 | 17.53 | 919 | 90.10 | 192.22 | 79 | 127.96 | 7840 | 768.63 |
Please inquire your sales representative for output ,performance and EMC solution.
