997

997Brush DC Motor /Round Type

Application: Lawn Mower 、Portable Power Tool 、Electric Door 、Suction Pool Cleaner 、Sole Cleaning Machine

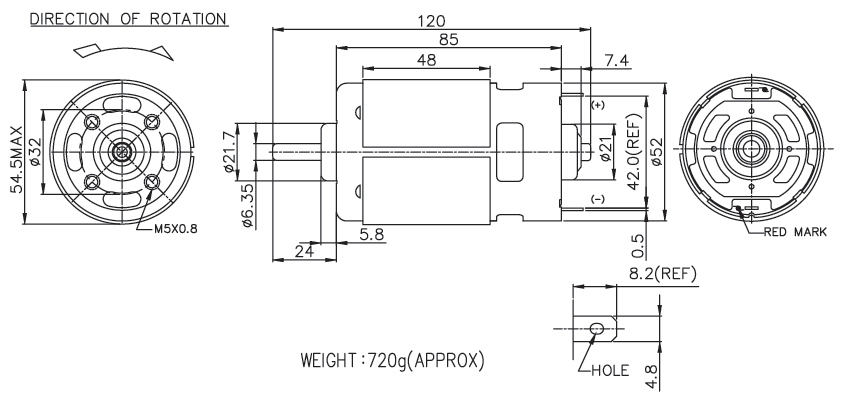

Brush DC Motor Appearance

Brush DC Motor Specification

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
997-5036-R 18.0-48.0 24.0V CONSTANT 4900 0.42 4198 2.79 1197 117.35 51.60 79.67 25.95 12350 1211
997-7018-R 6.0-36.0 12.0V CONSTANT 4900 1.40 4182 5.40 1168 114.51 50.16 78.44 48.12 11499 1127
997-5030-RC-NF 12.0-36.0 24.0V CONSTANT 5800 0.65 5165 2.84 1022 100.20 54.21 80.00 26.65 10623 1041
997B-5015x2TF-R 24.0-40.0 40.0V CONSTANT 19500 2.50 17361 13.94 2634 258.24 469.62 85.00 110.79 23373 2291
Please inquire your sales representative for output ,performance and EMC solution.

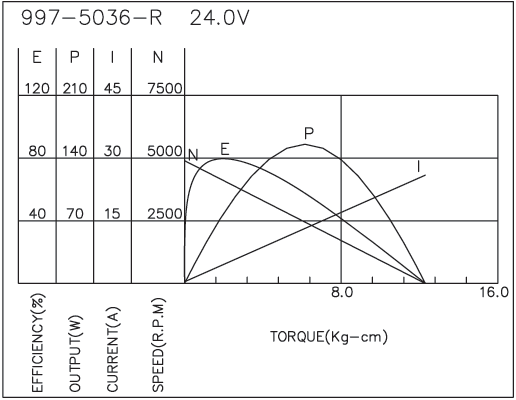

  • Brush DC Motor Performance-1

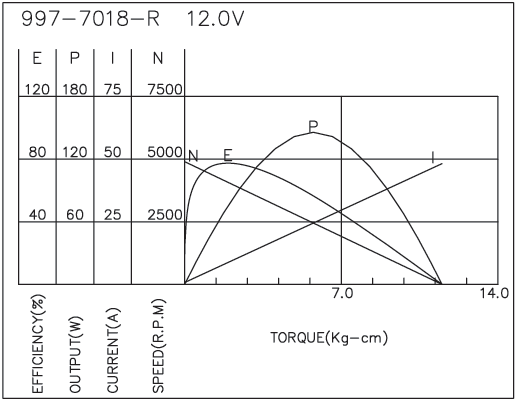

  • Brush DC Motor Performance-2

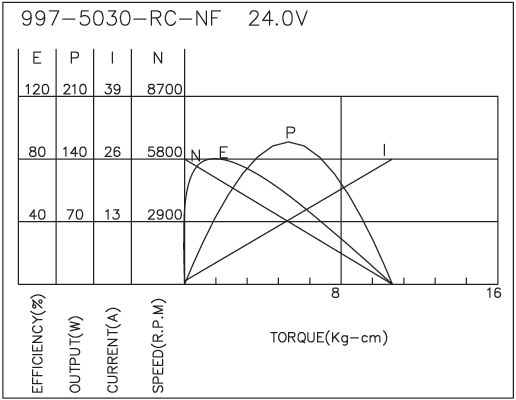

  • Brush DC Motor Performance-3

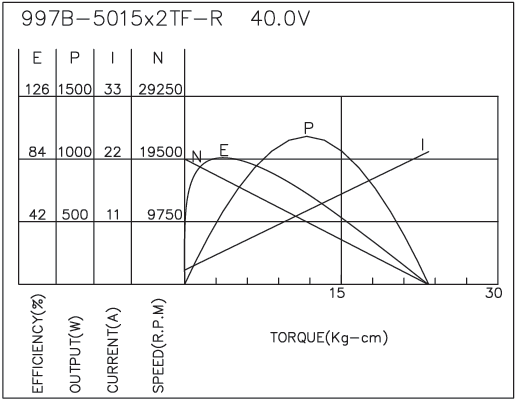

  • Brush DC Motor Performance-4
