A300Brush DC Motor /Round Type
Application： Exhaust Gas Re-circulation 、Electronic Throttle Control

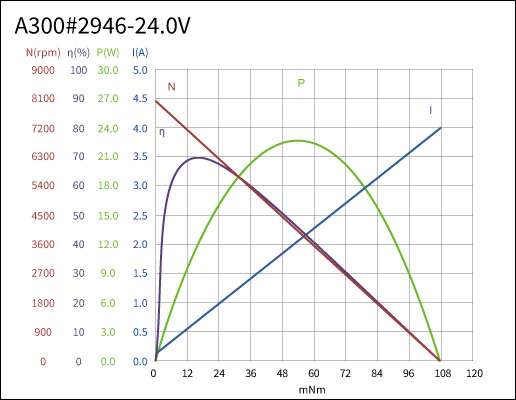

| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| A300#2946 | 18.0-30.0 | 24.0V CONSTANT | 8032 | 0.11 | 6891 | 0.66 | 155.754 | 15.27 | 11.02 | 69.5 | 3.99 | 1097.21 | 107.57 |
Please inquire your sales representative for output ,performance and EMC solution.
