A600Brush DC Motor /Round Type
Application： Electrical Park Brake 、Parking Lock Actuator
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

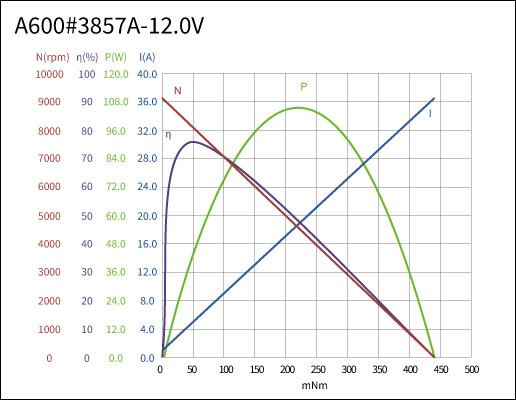

| A600#3857A-12.0V | 9.0-16.0 | 12.0V CONSTANT | 9163 | 0.6 | 8118 | 4.68 | 511.53 | 50.15 | 42.63 | 76 | 36.36 | 4486.79 | 439.88 |

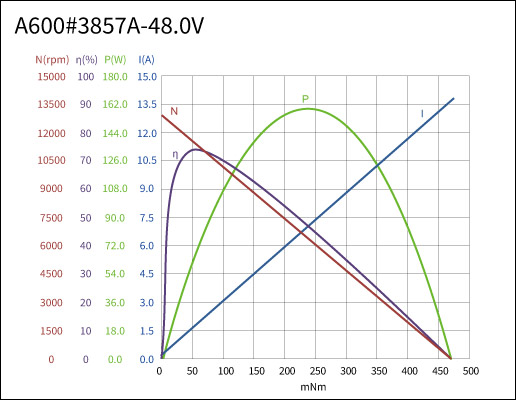

| A600#3857A-48.0V | 36.0-60.0 | 48.0V CONSTANT | 12942 | 0.273 | 11337 | 1.96 | 597.21 | 58.55 | 69.51 | 73.9 | 13.87 | 4816.34 | 472.19 |

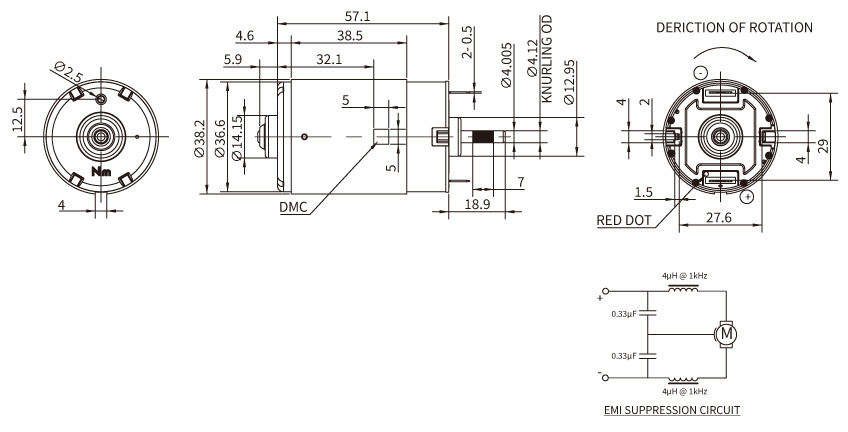

Please inquire your sales representative for output ,performance and EMC solution.
