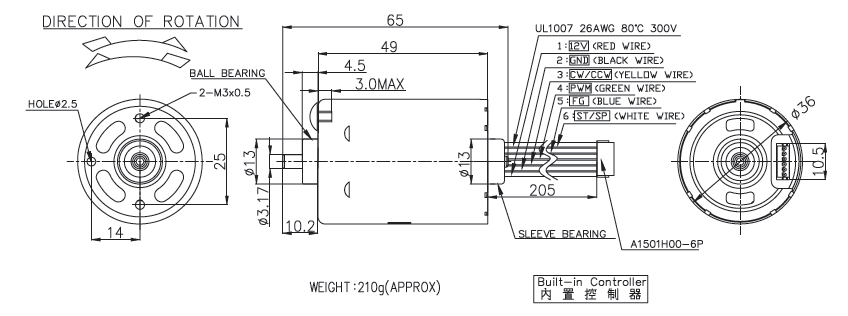

BL3649Brushless DC Motor /Round Type
Application： Lawn Mower 、Pump 、Robot 、Electric Bicycle 、Vending Machine 、Cutting Machine 、Gearbox
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

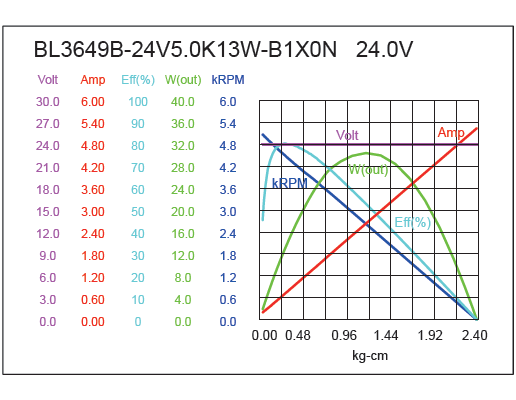

| BL3649B-24V5.0K13W-B1X0N | 10.0-30.0 | 24.0V CONSTANT | 5000 | 0.16 | 4484 | 0.72 | 286 | 28.04 | 13.17 | 81 | 5.23 | 2379 | 233.24 |

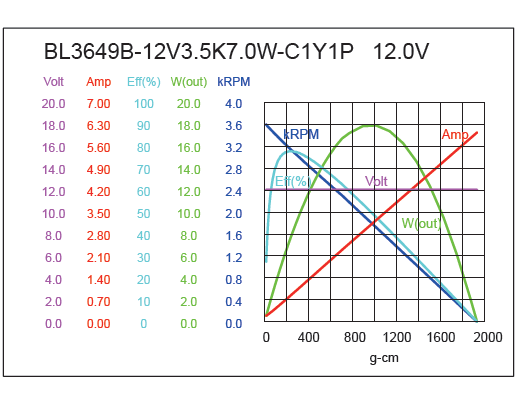

| BL3649B-12V3.5K7.0W-C1Y1P | 10.0-30.0 | 12.0V CONSTANT | 3500 | 0.16 | 3135 | 0.85 | 242 | 23.73 | 7.79 | 78 | 6.04 | 1936 | 189.80 |

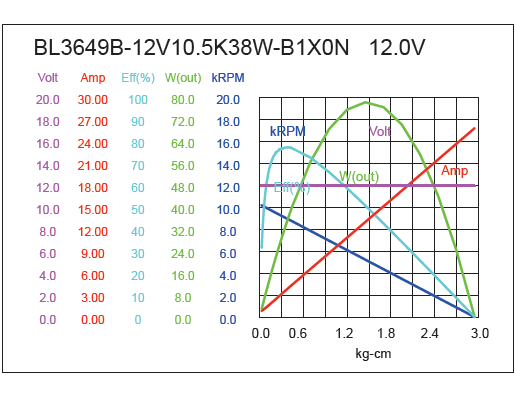

| BL3649B-12V10.5K38W-B1X0N | 10.0-30.0 | 12.0V CONSTANT | 10300 | 0.60 | 9042 | 3.83 | 379 | 37.16 | 35.19 | 78 | 25.92 | 2948 | 289.02 |

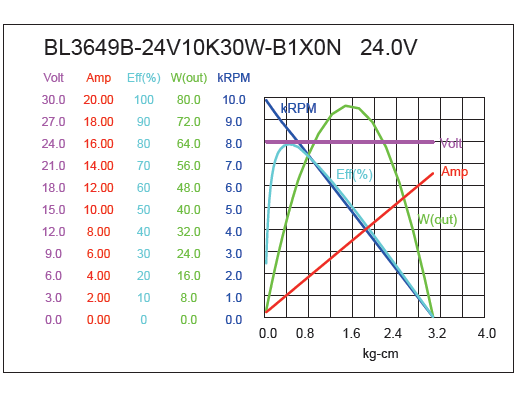

| BL3649B-24V10K30W-B1X0N | 10.0-30.0 | 24.0V CONSTANT | 10000 | 0.35 | 8532 | 2.17 | 438 | 42.94 | 38.38 | 79 | 13.19 | 3081 | 302.06 |
Please inquire your sales representative for output ,performance and EMC solution.
