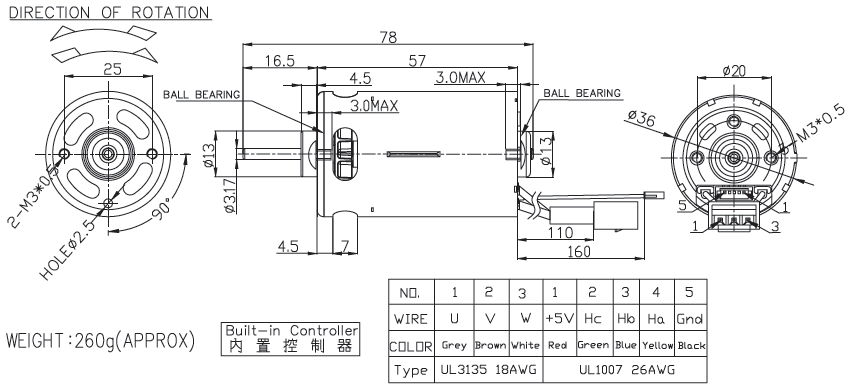

BL3657SBrushless DC Motor /Round Type
Application： Vacuum Cleaner 、Ventilator
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

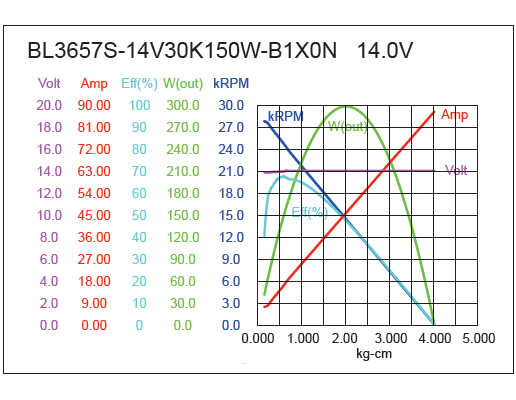

| BL3657S-14V30K150W-B1X0N | 7.0-36.0 | 14.0V CONSTANT | 30000 | 1.26 | 24938 | 15.84 | 580 | 60 | 149.56 | 69 | 87.69 | 4040 | 400 |

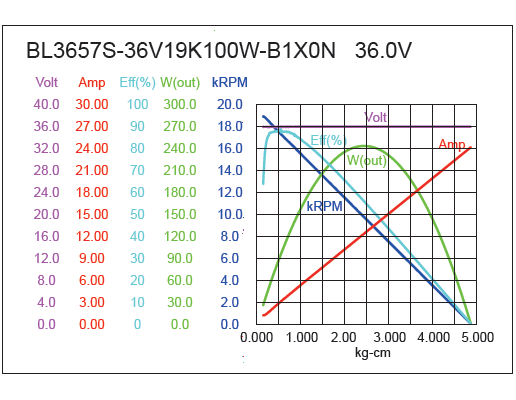

| BL3657S-36V19K100-B1X0N | 7.0-36.0 | 36.0V CONSTANT | 19300 | 0.30 | 16920 | 3.84 | 630 | 60 | 108.78 | 80 | 24.69 | 4500 | 440 |

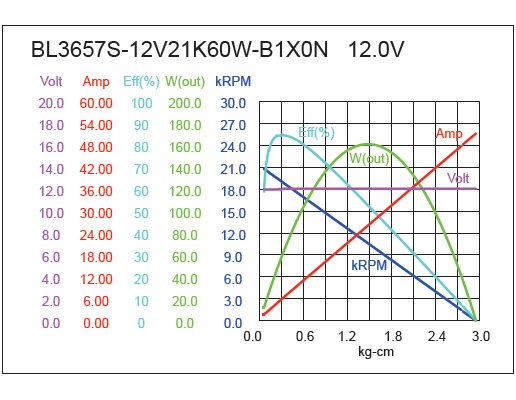

| BL3657S-12V21K60W-B1X0N | 7.0-36.0 | 12.0V CONSTANT | 21000 | 0.80 | 19048 | 6.02 | 310 | 30 | 60.25 | 85 | 51.33 | 2960 | 290 |

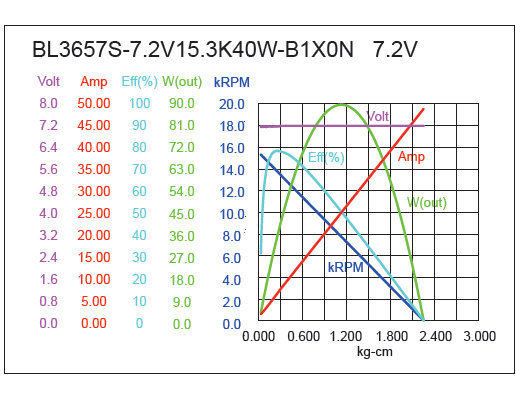

| BL3657S-7.2V15.3K40W-B1X0N | 7.0-36.0 | 7.2V CONSTANT | 15300 | 0.74 | 13755 | 6.40 | 260 | 30 | 36.02 | 79 | 48.96 | 2260 | 220 |
Please inquire your sales representative for output ,performance and EMC solution.
