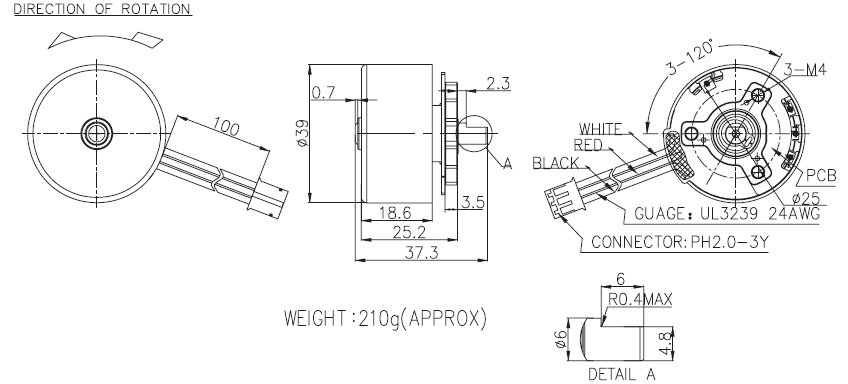

BL39E27External Rotor Brushless DC Motor /Round Type
Application： Fan 、Gardening Tool 、Suction Pool Cleaner 、Fascia Gun 、Car Washer
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

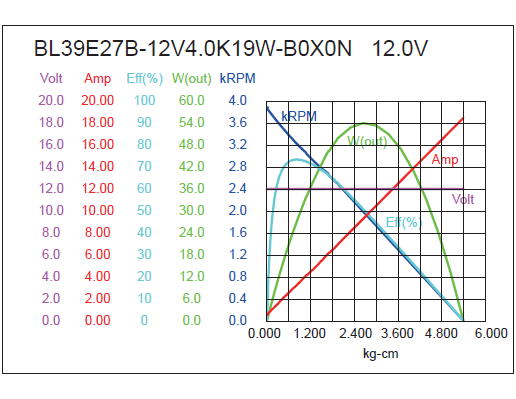

| BL39E27B-12V4.0K19W-B0X0N | 12.0-24.0 | 12.0V CONSTANT | 3970 | 0.33 | 3247 | 3.23 | 811 | 79.51 | 27.04 | 74 | 18.58 | 5402 | 529.61 |

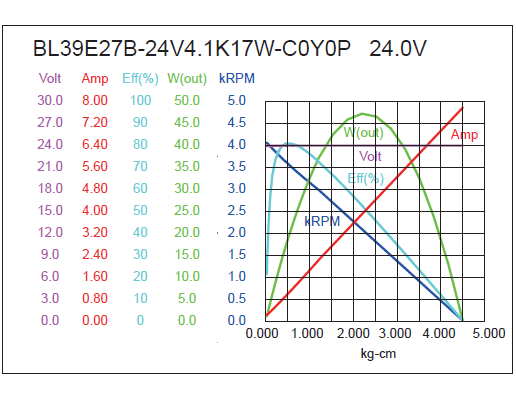

| BL39E27B-24V4.1K17W-C0Y0P | 12.0-24.0 | 24.0V CONSTANT | 4150 | 0.20 | 3634 | 0.92 | 467 | 45.78 | 17.43 | 81 | 7.80 | 4510 | 442.16 |
Please inquire your sales representative for output ,performance and EMC solution.
