BL40E16Brushless DC Motor /Round Type
Application： Hair Dryer
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

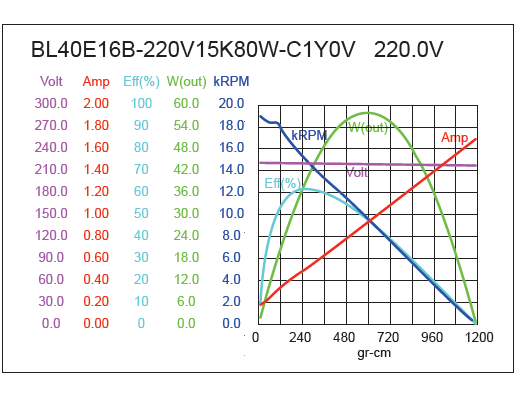

| BL40E16B-220V15K80W-C1Y0V（Without Fan） | (176-240)Vac | 220Vac/60HZ | 19000 | 0.12 | 14800 | 0.5 | 260 | 25.5 | 40 | 64 | 1.7 | 1186 | 116.3 |

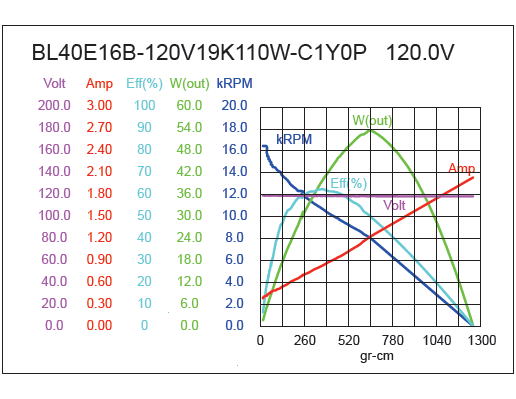

| BL40E16B-120V19K110W-C1Y0P（Without Fan） | (96-144)Vac | 120Vac/60HZ | 18000 | 0.24 | 10760 | 0.8 | 360 | 35.3 | 40 | 63 | 2.0 | 1260 | 123.5 |
Please inquire your sales representative for output ,performance and EMC solution.
