BL4259Brushless DC Motor /Round Type
Application： Robot Vacuum 、Water Pump 、Automatic Beer Dispenser 、Nucleic Acid Extractor 、Cutting Machine 、Washing Machine
BL4259 is a round-type brushless DC motor designed for use in household and industrial equipment, including robot vacuums, pumps, dispensers, and automated machinery. Custom specification support is available from NICHIBO DC Motor.
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

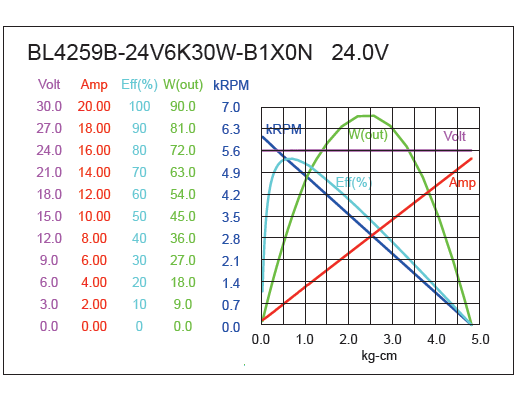

| BL4259B-24V6.0K30W-B1X0N | 10.0-26.0 | 24.0V CONSTANT | 6100 | 0.25 | 5211 | 2.45 | 802 | 78.63 | 42.92 | 76 | 15.28 | 5783 | 566.96 |
| BL4259B-18V4.0K20W-C1Y1P | 10.0-26.0 | 18.0V CONSTANT | 4000 | 0.19 | 3413 | 1.16 | 627 | 61.47 | 21.97 | 82 | 7.67 | 4786 | 469.22 |

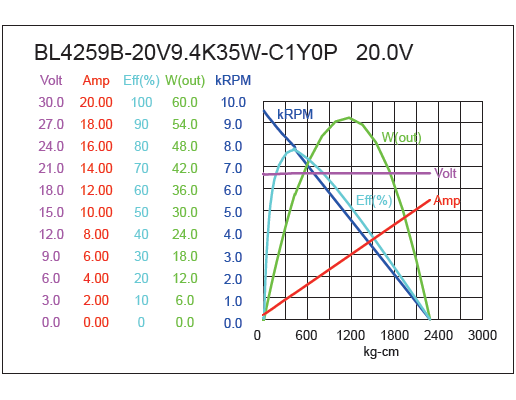

| BL4259B-20V9.4K35W-C1Y0P | 10.0-26.0 | 20.0V CONSTANT | 9400 | 0.40 | 7968 | 2.36 | 413 | 40.49 | 33.81 | 79 | 11.02 | 2290 | 224.51 |

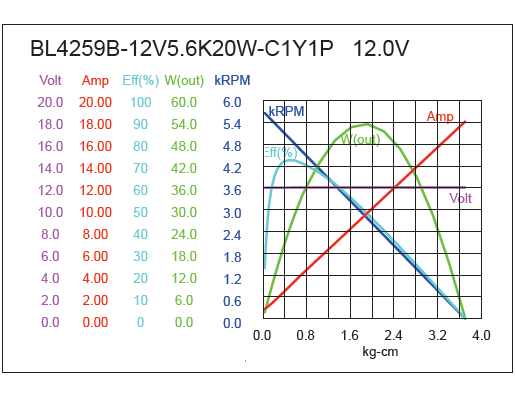

| BL4259B-12V5.6K20W-C1Y1P | 10.0-26.0 | 12.0V CONSTANT | 5600 | 0.60 | 4978 | 2.93 | 478 | 46.86 | 24.44 | 73 | 18.10 | 3710 | 363.73 |
Please inquire your sales representative for output ,performance and EMC solution.
