BL48F23Brushless DC Motor /Round Type
Application： Portable Power Tool
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

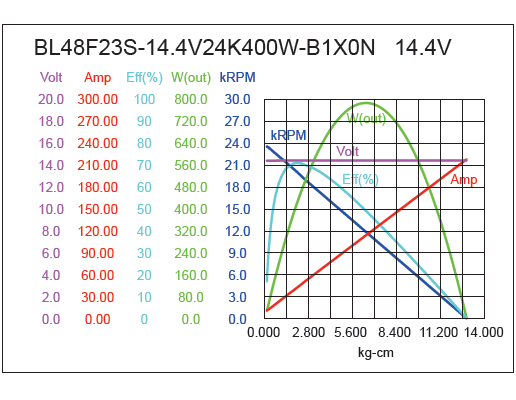

| BL48F23S-14.4V24K400W-B1X0N | 14.4-21.6V | 14.4V CONSTANT | 24000 | 7.80 | 20243 | 41.37 | 2010 | 200 | 417.44 | 72 | 218.85 | 12910 | 1270 |

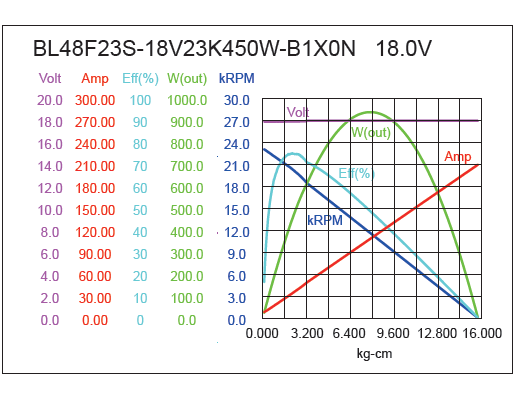

| BL48F23S-18V23K450W-B1X0N | 14.4-21.6V | 18.0V CONSTANT | 23000 | 4.70 | 20450 | 33.50 | 2160 | 210 | 453.84 | 76 | 210.75 | 15750 | 1540 |
Please inquire your sales representative for output ,performance and EMC solution.
