FC-260

FC-260Brush DC Motor /Round Type

Application: Massager 、R/C Car 、Small Fan

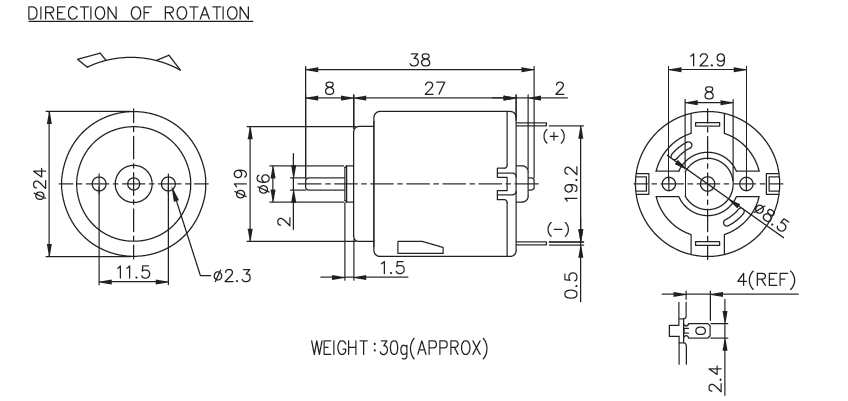

Brush DC Motor Appearance

Brush DC Motor Specification

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
FC-260-2670-NR 3.0-4.5 3.0V CONSTANT 10000 0.30 7800 1.09 16.83 1.65 1.35 41.40 3.97 78 7.65
FC-260-09420-NR 6.0-18.0 12.0V CONSTANT 7850 0.08 5685 0.16 12.23 1.20 0.71 38.85 0.45 51 5.00
FC-260-15190-NR 6.0-12.0 6.0V CONSTANT 8600 0.14 6173 0.34 16.32 1.60 1.03 50.97 1.26 76 7.45
FC-260-07520-NR 12.0-24.0 24.0V CONSTANT 12400 0.07 9500 0.14 15.88 1.56 1.56 47.85 0.47 70 6.86
Please inquire your sales representative for output ,performance and EMC solution.

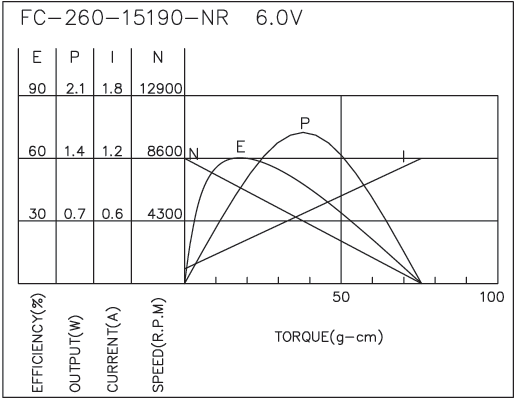

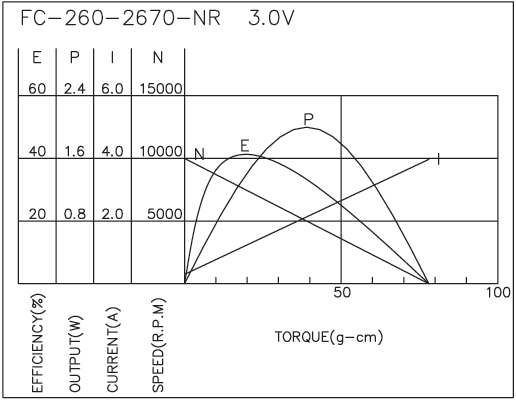

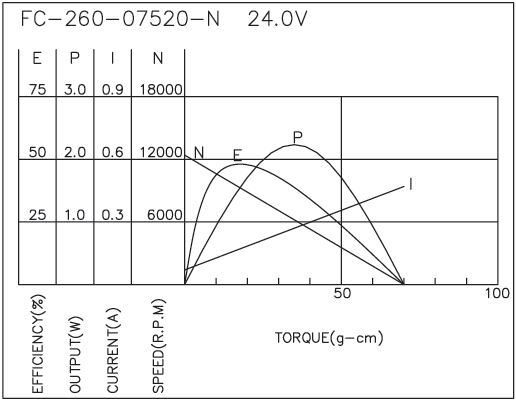

  • Brush DC Motor Performance-1
  • Brush DC Motor Performance-2
  • Brush DC Motor Performance-3
  • Brush DC Motor Performance-4
