FC-280Brush DC Motor /Round Type
Application： Central Lock 、Massager 、Hair Clipper 、R/C Car
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

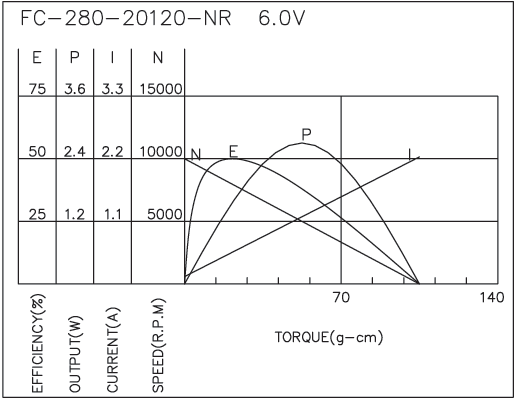

| FC-280-20120-NR | 4.5-9.0 | 6.0V CONSTANT | 10000 | 0.13 | 7800 | 0.60 | 21.62 | 2.11 | 1.70 | 50.00 | 2.23 | 105 | 10.29 |

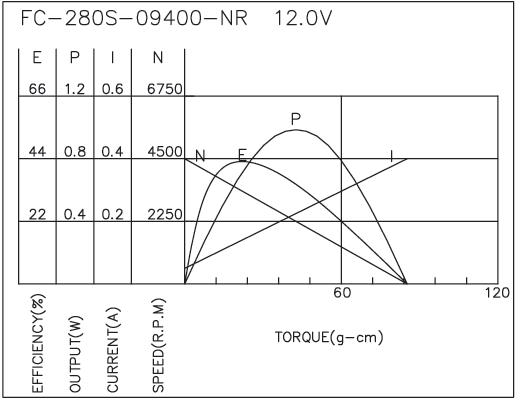

| FC-280S-09400-NR | 12.0-24.0 | 12.0V CONSTANT | 4500 | 0.05 | 3095 | 0.14 | 21.57 | 2.11 | 0.69 | 43.00 | 0.41 | 85 | 8.33 |

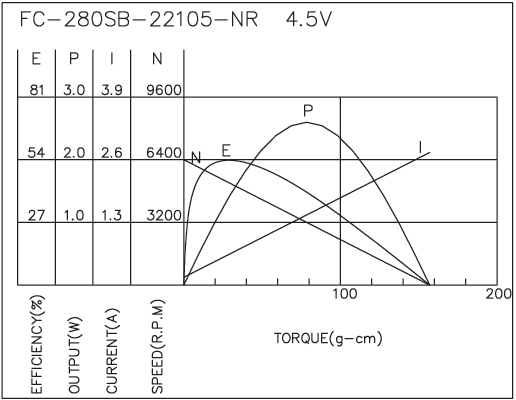

| FC-280SB-22105-NR | 4.5-9.0 | 4.5V CONSTANT | 6400 | 0.16 | 5147 | 0.59 | 26.23 | 2.57 | 1.39 | 54.00 | 2.76 | 157 | 15.39 |

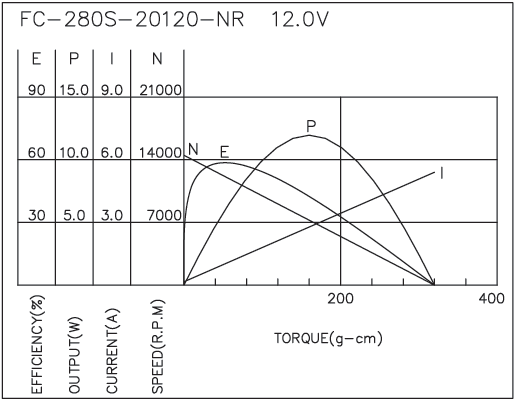

| FC-280S-20120-NR | 4.5-12.0 | 12.0V CONSTANT | 14500 | 0.16 | 12200 | 0.88 | 49.17 | 4.82 | 6.19 | 58.63 | 5.40 | 320 | 31.37 |
Please inquire your sales representative for output ,performance and EMC solution.
