GRBrush DC Motor /Round Type
Application： Power Antenna 、Drill / Electric Screwdriver 、Vending Machine
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

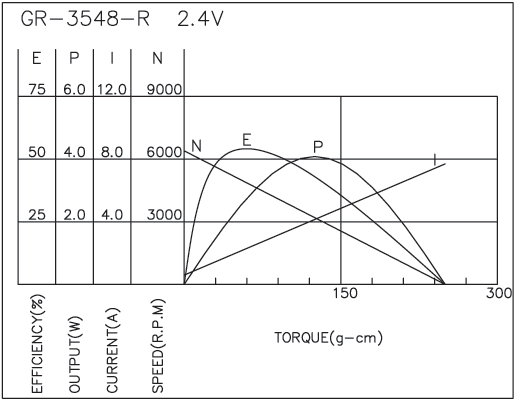

| GR-3548-R | 1.2-3.6 | 2.4V CONSTANT | 6400 | 0.60 | 5000 | 2.15 | 54.55 | 5.35 | 2.80 | 54.27 | 7.70 | 250 | 24.51 |

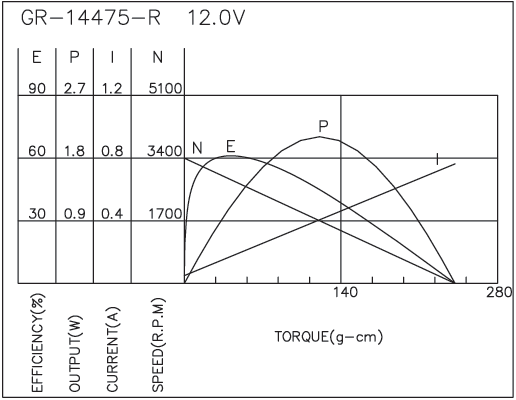

| GR-14475-R | 12.0-24.0 | 12.0V CONSTANT | 3400 | 0.06 | 2944 | 0.14 | 30.05 | 2.95 | 0.91 | 61.00 | 0.76 | 242 | 23.73 |

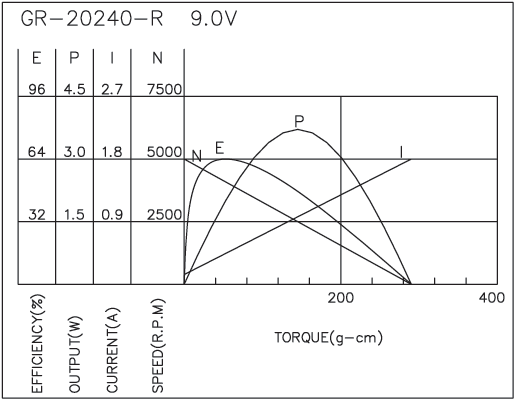

| GR-20240-R | 6.0-18.0 | 9.0V CONSTANT | 5000 | 0.14 | 4021 | 0.36 | 45.62 | 4.47 | 1.88 | 64.00 | 1.82 | 290 | 28.43 |

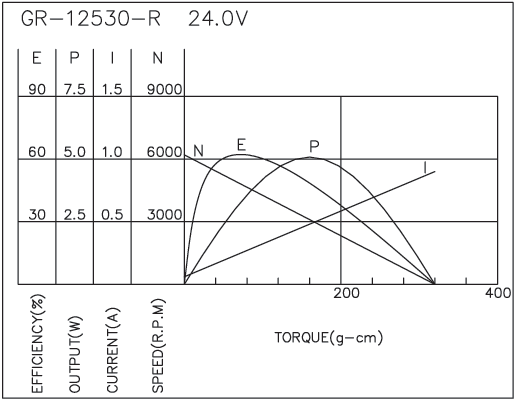

| GR-12530-R | 12.0-24.0 | 24.0V CONSTANT | 6200 | 0.06 | 5000 | 0.21 | 61.76 | 6.05 | 3.17 | 62.31 | 0.90 | 320 | 31.37 |
Please inquire your sales representative for output ,performance and EMC solution.
