GRDBrush DC Motor /Round Type
Application： Portable Power Tool 、Power Antenna 、Tire Inflator 、Auto Transformer
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

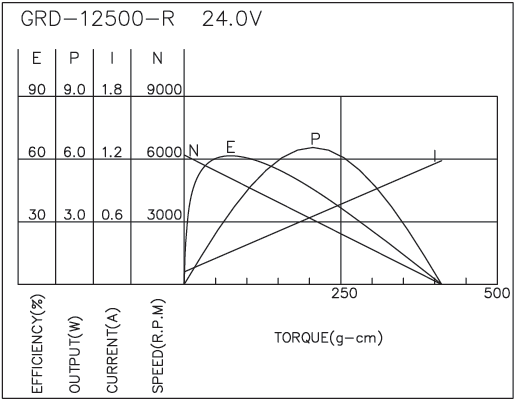

| GRD-12500-R | 12.0-24.0 | 24.0V CONSTANT | 6200 | 0.12 | 4958 | 0.27 | 73.67 | 7.22 | 3.75 | 61.31 | 1.19 | 411 | 40.29 |

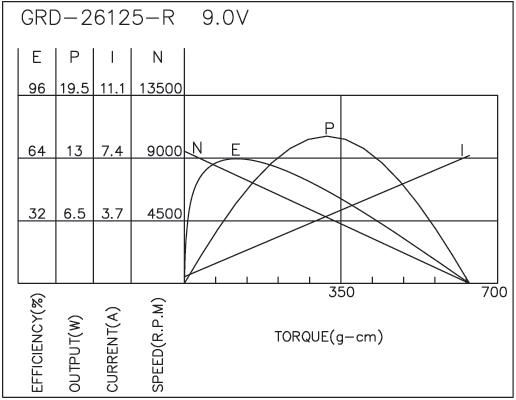

| GRD-26125-R | 3.0-9.0 | 9.0V CONSTANT | 9500 | 0.40 | 7746 | 1.39 | 97.96 | 9.60 | 7.79 | 64.00 | 7.55 | 637 | 62.45 |

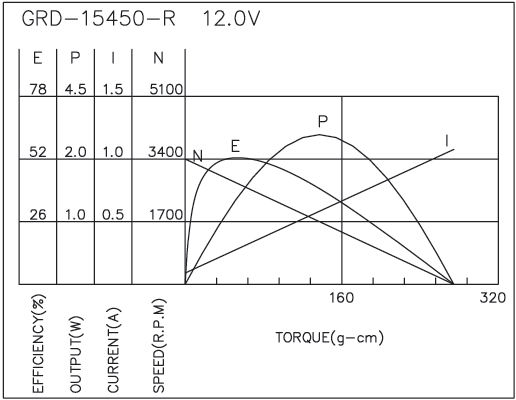

| GRD-15450-R | 12.0-24.0 | 12.0V CONSTANT | 3400 | 0.09 | 2851 | 0.24 | 45.89 | 4.50 | 1.34 | 52.08 | 1.08 | 273 | 26.76 |
| GRD-16350-R | 12.0-24.0 | 12.0V CONSTANT | 4500 | 0.13 | 3574 | 0.34 | 65.11 | 6.38 | 2.39 | 61.25 | 1.48 | 333 | 32.65 |
Please inquire your sales representative for output ,performance and EMC solution.
