H3SN&H5NBrush DC Motor /Round Type
Application： Portable Power Tool 、Tire Inflator 、Vacuum Cleaner 、R/C Car 、Coffee Machine
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| HS3SN-4070-R | 6.0-12.0 | 12.0V CONSTANT | 11000 | 0.50 | 9300 | 2.87 | 235 | 23.04 | 22.58 | 65 | 16.46 | 1580 | 154.90 |

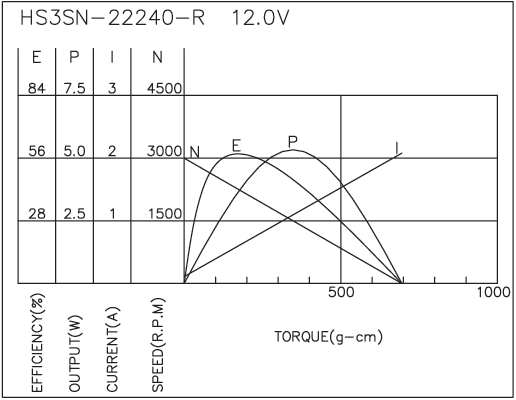

| HS3SN-22240-R | 12.0-24.0 | 12.0V CONSTANT | 3000 | 0.11 | 2300 | 0.56 | 162 | 15.88 | 3.84 | 58 | 2.07 | 695 | 68.14 |

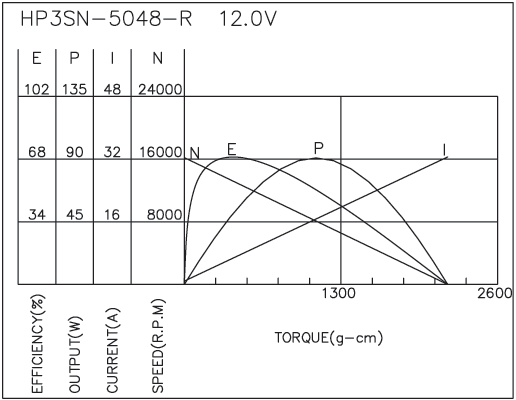

| HP3SN-5048-R | 6.0-12.0 | 12.0V CONSTANT | 16200 | 0.86 | 13800 | 5.38 | 312 | 30.59 | 44.34 | 69 | 32.55 | 2186 | 214.31 |
| HP3SN-26135-R | 12.0-24.0 | 12.0V CONSTANT | 5400 | 0.20 | 4400 | 0.98 | 163 | 15.98 | 7.50 | 65 | 5.43 | 1081 | 105.98 |
Please inquire your sales representative for output ,performance and EMC solution.
