J3FN&J5FNBrush DC Motor /Round Type
Application： Printer 、Portable Power Tool 、Pump 、Automatic Car Curtain 、Action Figure
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| JD3FN-5025-R | 4.8-9.6 | 9.6V CONSTANT | 25500 | 1.40 | 21800 | 7.75 | 230 | 22.55 | 51.68 | 70 | 47.75 | 1673 | 164.02 |

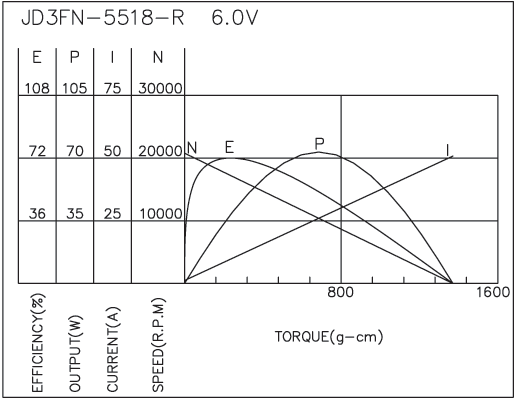

| JD3FN-5518-R | 3.6-6.0 | 6.0V CONSTANT | 20800 | 1.20 | 17600 | 8.76 | 209 | 20.49 | 37.98 | 72 | 50.84 | 1371 | 134.41 |

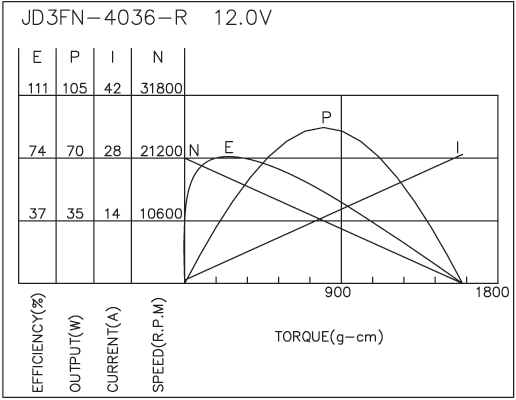

| JD3FN-4036-R | 6.0-12.0 | 12.0V CONSTANT | 21200 | 0.75 | 17986 | 4.77 | 289 | 28.33 | 42.22 | 75 | 28.77 | 1598 | 156.67 |
| JD3FN-6512-R | 2.4-3.6 | 3.6V CONSTANT | 20000 | 2.00 | 16340 | 8.89 | 113 | 11.08 | 18.89 | 59 | 40.05 | 626 | 61.37 |
Please inquire your sales representative for output ,performance and EMC solution.
