K3N&K5NBrush DC Motor /Round Type
Application： Air Compressor 、Portable Power Tool 、Pump 、Hair Dryer 、Fan 、Vending Machine
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

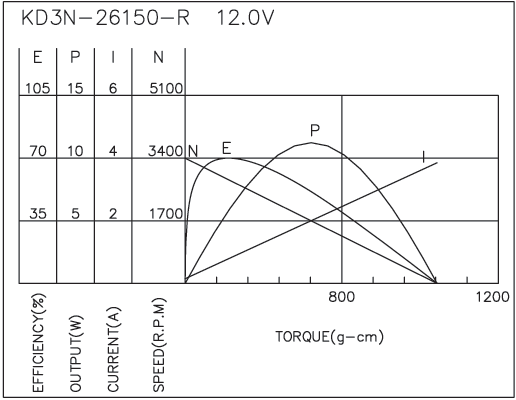

| KD3N-26150-R | 12.0-24.0 | 12.0V CONSTANT | 3400 | 0.16 | 2788 | 0.68 | 192 | 8.82 | 5.50 | 70 | 3.85 | 1288 | 126.27 |

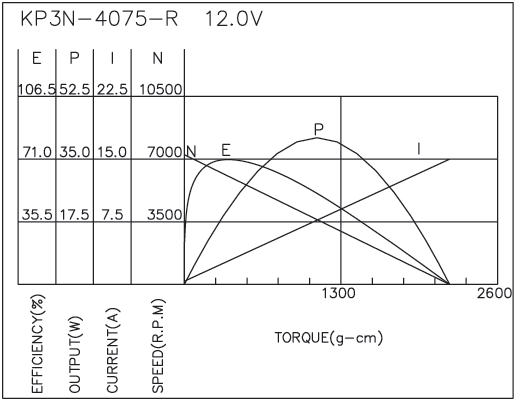

| KP3N-4075-R | 6.0-12.0 | 12.0V CONSTANT | 7250 | 0.38 | 6494 | 1.65 | 209 | 20.49 | 13.95 | 71 | 15.36 | 2202 | 215.88 |
| KP3N-7521-R | 4.8-12.0 | 7.2V CONSTANT | 14500 | 1.50 | 12700 | 9.89 | 390 | 38.24 | 51.24 | 72 | 79.81 | 3608 | 353.73 |
| KP3N-35110-R | 6.0-24.0 | 12.0V CONSTANT | 4500 | 0.15 | 3800 | 1.14 | 242 | 23.73 | 9.61 | 71 | 8.33 | 2020 | 198.04 |
Please inquire your sales representative for output ,performance and EMC solution.
