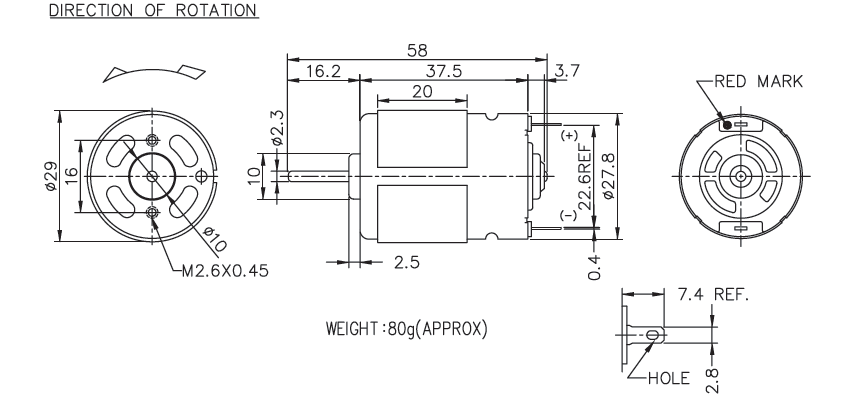

L3FN&L5FNBrush DC Motor /Round Type
Application： Printer 、Portable Power Tool 、Pump 、Photocopier 、Robot Vacuum 、Window Cleaning Robot
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| LS3FN-12300-R | 6.0-24.0 | 9.6V CONSTANT | 3100 | 0.06 | 2300 | 0.17 | 31 | 3.04 | 0.74 | 49 | 0.54 | 136 | 13.33 |

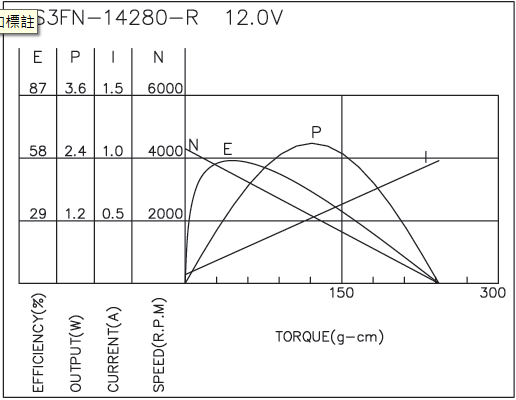

| LS3FN-14280-R | 6.0-24.0 | 12.0V CONSTANT | 4300 | 0.07 | 3400 | 0.23 | 42 | 4.12 | 1.49 | 57 | 0.98 | 243 | 23.82 |

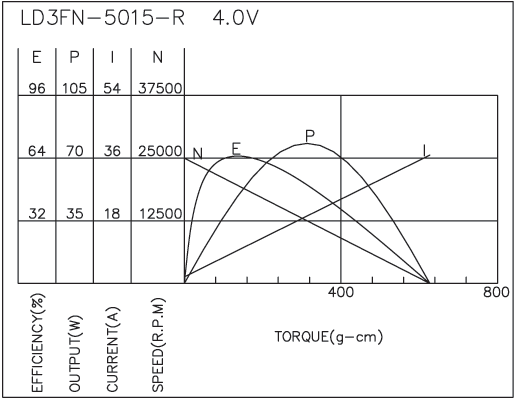

| LD3FN-5015-R | 2.4-4.8 | 4.0V CONSTANT | 25000 | 2.10 | 19900 | 10.77 | 135 | 13.24 | 27.69 | 65 | 41.90 | 627 | 61.47 |
| LD3FN-26110-R | 6.0-18.0 | 18.0V CONSTANT | 15000 | 0.22 | 12800 | 1.60 | 149 | 14.61 | 19.61 | 69 | 9.85 | 1050 | 102.94 |
Please inquire your sales representative for output ,performance and EMC solution.
