L3N&L5NBrush DC Motor /Round Type
Application： Portable Power Tool 、Warning Lamp 、Hair Dryer 、Vacuum Cleaner
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| LS3N-2870-R | 6.0-12.0 | 7.2V CONSTANT | 10400 | 0.32 | 8400 | 1.73 | 94 | 9.21 | 8.28 | 66 | 7.88 | 520 | 50.98 |
| LS3N-3558-R | 3.0-7.2 | 6.0V CONSTANT | 10500 | 0.40 | 8800 | 2.20 | 98 | 9.61 | 8.93 | 68 | 12.60 | 668 | 65.49 |

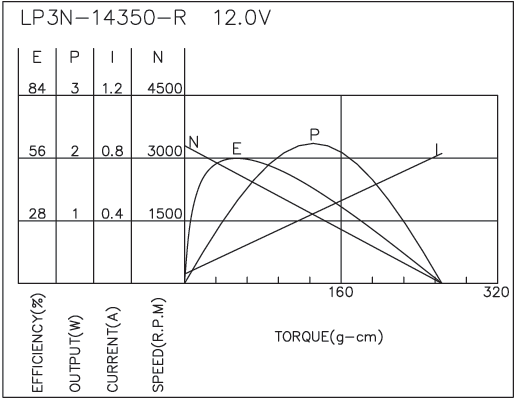

| LP3N-14350-R | 6.0-12.0 | 12.0V CONSTANT | 3200 | 0.06 | 2600 | 0.21 | 57 | 5.20 | 1.43 | 57 | 0.83 | 263 | 25.78 |
| LP3N-18200-R | 6.0-12.0 | 6.0V CONSTANT | 3000 | 0.08 | 2400 | 0.23 | 61 | 2.84 | 0.74 | 61 | 1.12 | 195 | 19.11 |
Please inquire your sales representative for output ,performance and EMC solution.
