LD5Brush DC Motor /Round Type
Application： Robot Vacuum 、Auto Pulley
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

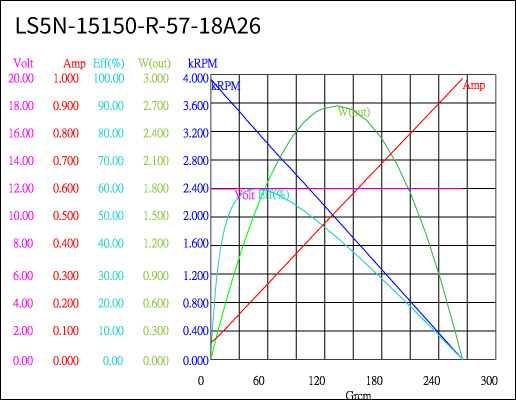

| LS5N-15150-R/57 | 12.0-18.0 | 12.0V CONSTANT | 4000 | 0.9 | 3188 | 0.225 | 49.75 | 0.4879 | 1.6288 | 60.15 | 0.986 | 265.100 | 2.5997 |

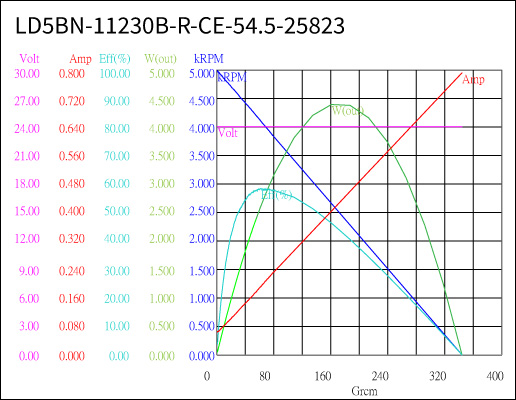

| LD5BN-11230B-R-CE/54.5 | 18.0-24.0 | 24.0V CONSTANT | 5000 | 0.1 | 4131 | 0.185 | 57.55 | 0.5644 | 2.4415 | 57.88 | 0.787 | 329.467 | 3.231 |
Please inquire your sales representative for output ,performance and EMC solution.
