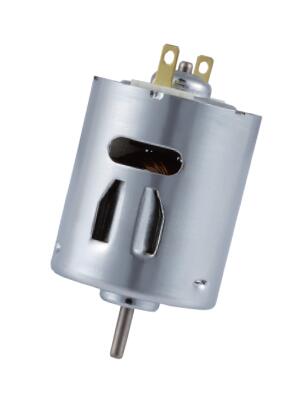

M3FNBrush DC Motor /Round Type
Application： Photocopier 、Massager 、Water Pump
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

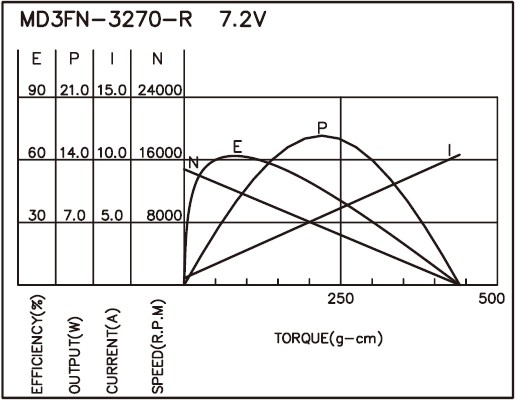

| MD3FN-3270-R | 3.0-7.2 | 7.2V CONSTANT | 14800 | 0.55 | 12200 | 2.10 | 75 | 7.35 | 9.32 | 61 | 10.40 | 440 | 43.14 |

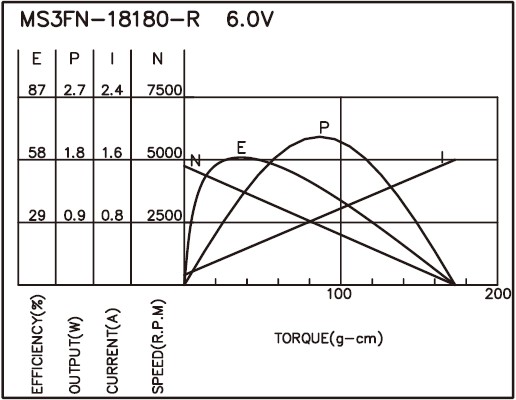

| MS3FN-18180-R | 6.0-12.0 | 6.0V CONSTANT | 4750 | 0.13 | 3700 | 0.42 | 36 | 3.53 | 1.38 | 59 | 1.60 | 173 | 16.96 |
| MS3FN-19145-R | 6.0-12.0 | 6.0V CONSTANT | 5900 | 0.17 | 4300 | 0.59 | 40 | 3.92 | 1.81 | 53 | 2.01 | 172 | 16.86 |
| MP3FN-2885-R | 6.0-12.0 | 9.6V CONSTANT | 15700 | 0.45 | 12900 | 2.40 | 106 | 10.39 | 14.22 | 62 | 11.05 | 600 | 58.82 |
Please inquire your sales representative for output ,performance and EMC solution.
