M3N&M5NBrush DC Motor /Round Type
Application： Warning Lamp 、Pump 、Hair Dryer 、Robot Vacuum 、ATM
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

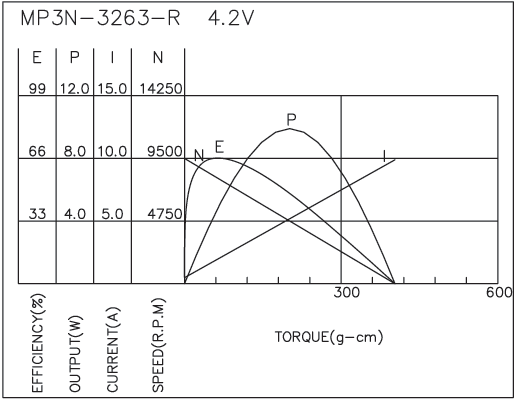

| MP3N-3263-R | 3.0-6.0 | 4.2V CONSTANT | 9500 | 0.48 | 8065 | 1.74 | 57 | 5.59 | 4.75 | 66 | 9.88 | 403 | 39.51 |
| MD3N-18195-R | 6.0-12.0 | 7.2V CONSTANT | 5500 | 0.17 | 4153 | 0.49 | 48 | 4.71 | 2.04 | 60 | 1.90 | 229 | 22.45 |

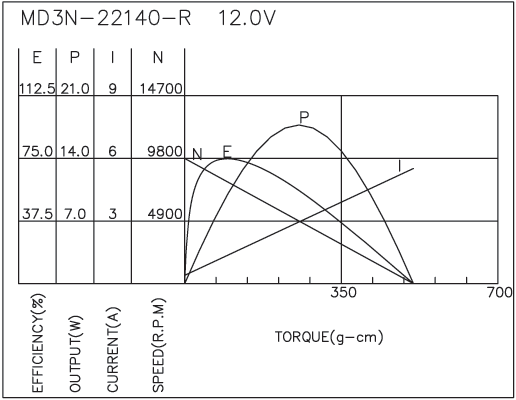

| MD3N-22140-R | 4.5-12.0 | 12.0V CON0STANT | 13500 | 0.40 | 11325 | 1.19 | 88 | 8.63 | 10.19 | 75 | 5.53 | 511 | 50.10 |
| MD3N-12340-R | 12.0-24.0 | 12.0V CONSTANT | 4800 | 0.11 | 3903 | 0.24 | 40 | 3.92 | 1.59 | 55 | 0.87 | 184 | 18.04 |
Please inquire your sales representative for output ,performance and EMC solution.
