N3FN&N5FNBrush DC Motor /Round Type
Application： Portable Power Tool 、Motorized Toy
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| ND3SFN-4565-R | 6.0-24.0 | 12.0V CONSTANT | 6700 | 0.50 | 5800 | 2.60 | 367 | 35.98 | 22.00 | 71 | 17.91 | 2927 | 286.96 |

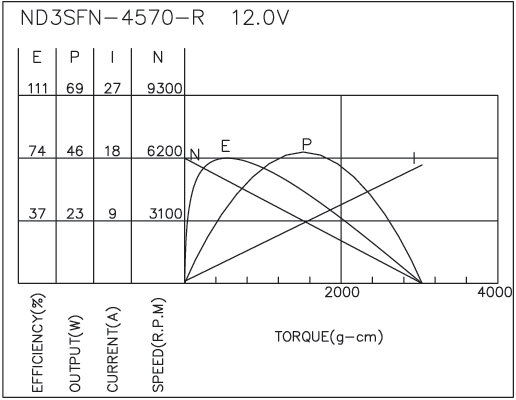

| ND3SFN-4570-R | 6.0-24.0 | 12.0V CONSTANT | 6200 | 0.30 | 5400 | 2.17 | 342 | 33.53 | 19.08 | 74 | 17.02 | 3034 | 297.45 |
| NC3SFN-6035-R | 6.0-18.0 | 12.0V CONSTANT | 12000 | 1.00 | 10700 | 5.63 | 465 | 45.59 | 51.50 | 76 | 51.36 | 4557 | 446.76 |

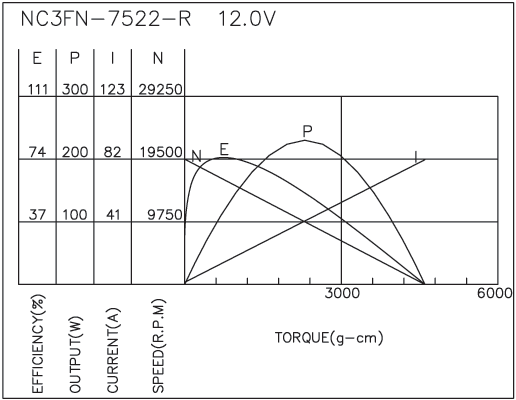

| NC3SFN-7522-R | 6.0-12.0 | 12.0V CONSTANT | 19500 | 1.40 | 17500 | 9.42 | 466 | 45.69 | 83.95 | 75 | 81.60 | 4603 | 451.27 |
Please inquire your sales representative for output ,performance and EMC solution.
