RK-290

RK-290Brush DC Motor /Round Type

Application: Electric Curtain 、Electric Window

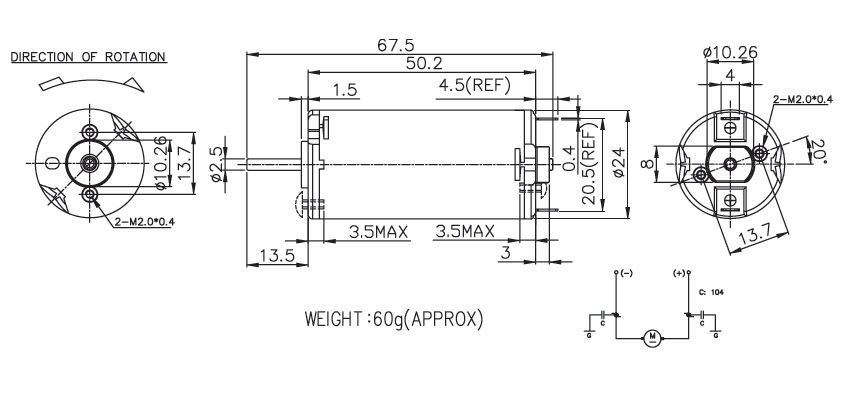

Brush DC Motor Appearance

Brush DC Motor Specification

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
RK-290B-17230S-R-CE 18.5-29.5 24.0V CONSTANT 7800 0.12 5760 0.53 124.8 12.24 7.38 60 1.85 526 51.56
RK-290B-20150-R-CE 12.0-24.0 12.0V CONSTANT 6200 0.16 4792 0.54 83.1 8.15 4.09 66 2.43 454 44.51
RK-290B-14295-R-CE 12.0-36.0 24.0V CONSTANT 6000 0.09 4861 0.27 81.6 8.00 4.07 66 1.24 457 44.80
RK-290XB-3263-R-CE 6.0-12.0 7.0V CONSTANT 6600 0.40 5624 1.52 128.5 12.60 7.42 72 8.77 927 90.88
Please inquire your sales representative for output ,performance and EMC solution.
  • Brush DC Motor Performance-1
  • Brush DC Motor Performance-2

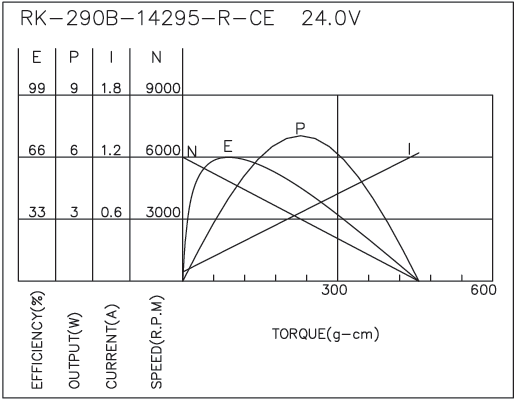

  • Brush DC Motor Performance-3

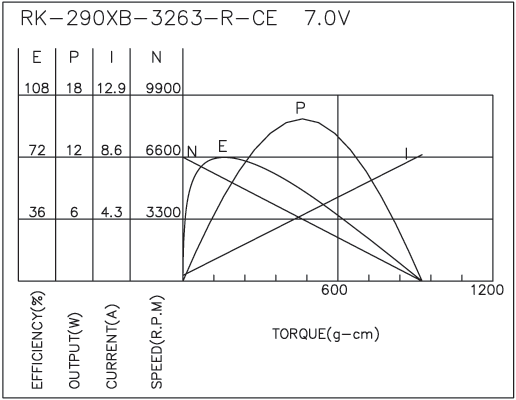

  • Brush DC Motor Performance-4
