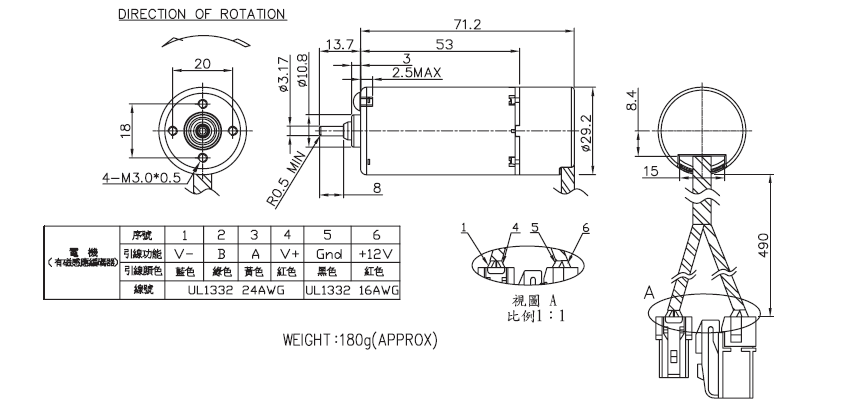

RK-2910Brush DC Motor /Round Type
Application： Automobile Electric Tailgate Push Rod

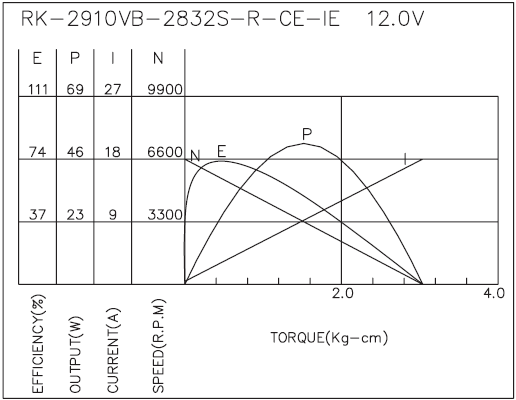

| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| RK-2910VB-2832-R-CE-IE | 10.0-14.0 | 12.0V CONSTANT | 6600 | 700 | 5800 | 3.80 | 530 | 52 | 30 | 70 | 20 | 3200 | 313 |
| RK-2910VB-1763-R-CE-IE | 10.0-14.0 | 24.0V CONSTANT | 7000 | 230 | 6180 | 1.34 | 3900 | 38 | 25 | 77 | 9 | 290 | 284 |
Please inquire your sales representative for output ,performance and EMC solution.
