RK-525Brush DC Motor /Round Type
Application： Portable Power Tool 、Robot Vacuum 、Gamepad 、Vending Machine
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

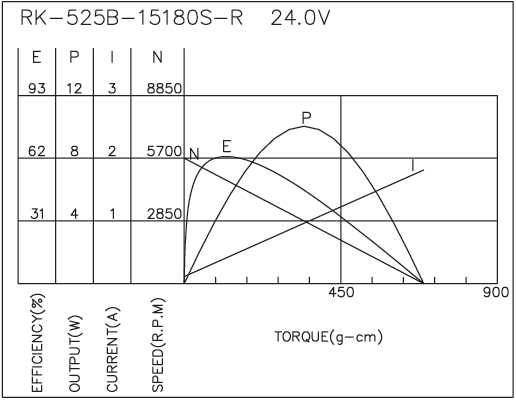

| RK-525B-15180S-R | 6.0-36.0 | 24.0V CONSTANT | 5700 | 0.11 | 4613 | 0.39 | 118 | 11.57 | 5.59 | 63 | 1.81 | 688 | 67.45 |

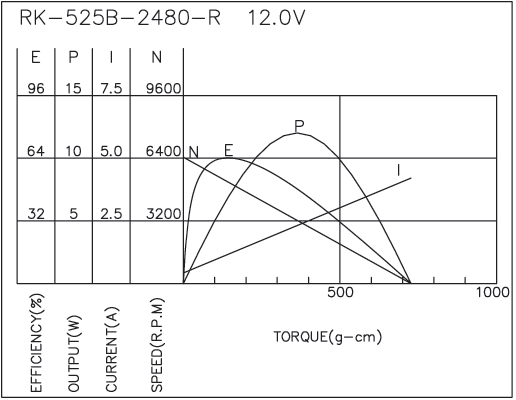

| RK-525B-2480-R | 6.0-36.0 | 12.0V CONSTANT | 6450 | 0.42 | 5131 | 0.96 | 136 | 13.33 | 7.15 | 64 | 4.21 | 727 | 71.72 |

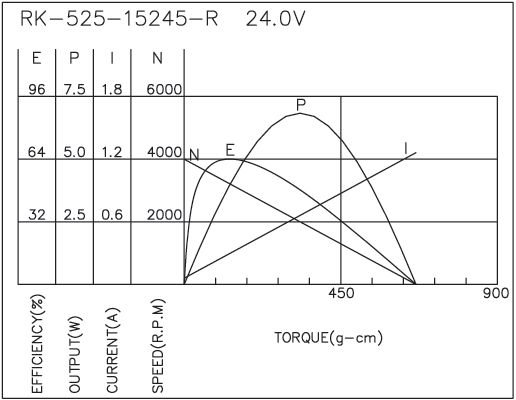

| RK-525-15245-R | 12.0-36.0 | 24.0V CONSTANT | 4000 | 0.06 | 3305 | 0.27 | 116 | 11.37 | 3.93 | 64 | 1.26 | 666 | 65.29 |

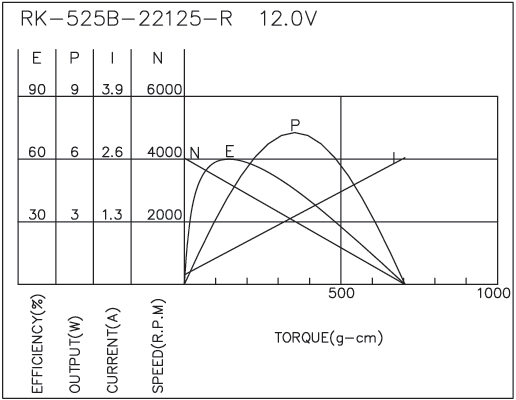

| RK-525B-22125-R | 6.0-24.0 | 12.0V CONSTANT | 4000 | 0.20 | 3226 | 0.59 | 127 | 12.45 | 4.20 | 60 | 2.63 | 704 | 69.02 |
Please inquire your sales representative for output ,performance and EMC solution.
