RK-665Brush DC Motor /Round Type
Application： Portable Power Tool 、Gamepad 、Electric Push Rod
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

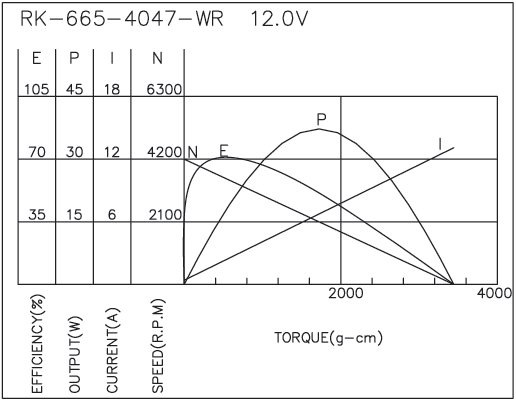

| RK-665-4047-WR | 9.0-24.0 | 12.0V CONSTANT | 4200 | 0.40 | 3566 | 2.03 | 456 | 44.71 | 16.69 | 71 | 13.01 | 3444 | 337 |

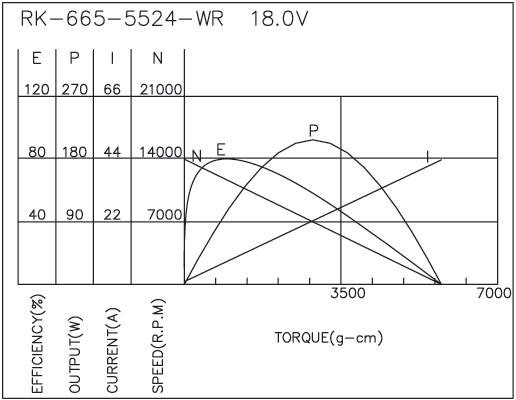

| RK-665-5524-WR | 6.0-21.0 | 18.0V CONSTANT | 14000 | 0.98 | 11792 | 6.83 | 813 | 79.71 | 98.45 | 81 | 43.76 | 5746 | 565 |
| RK-665-6019-WR | 6.0-21.0 | 19.8V CONSTANT | 18800 | 1.60 | 15576 | 10.49 | 1040 | 101.96 | 166.36 | 81 | 69.45 | 7962 | 781 |

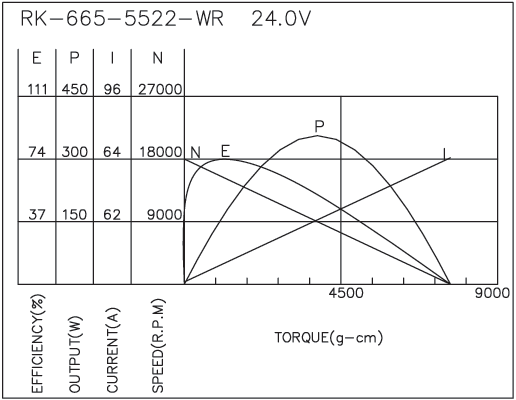

| RK-665-5522-WR | 12.0-24.0 | 24.0V CONSTANT | 18000 | 1.20 | 15848 | 8.99 | 944 | 92.55 | 153.64 | 74 | 64.61 | 7648 | 750 |
Please inquire your sales representative for output ,performance and EMC solution.
