RS-800Brush DC Motor /Round Type
Application： Portable Power Tool
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

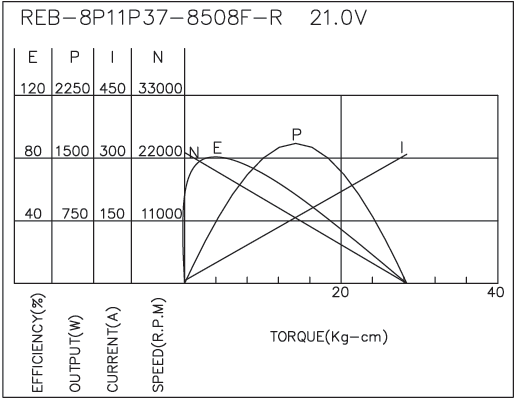

| REB-8P11P37-8508F-R | 12.0-24.0 | 21.0V CONSTANT | 23000 | 5.00 | 19455 | 36.31 | 3005 | 294.61 | 600.38 | 81 | 309.17 | 28389 | 2783.24 |

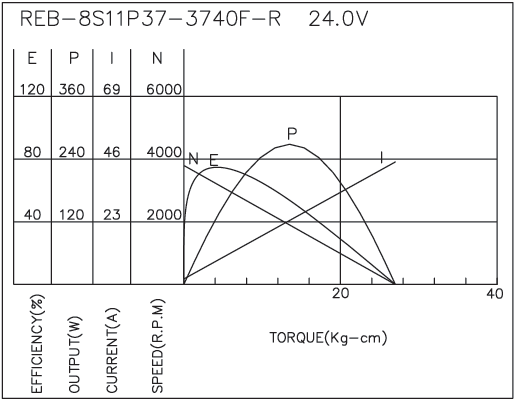

| REB-8S11P37-3740F-R | 12.0-24.0 | 24.0V CONSTANT | 3800 | 1.40 | 3258 | 6.72 | 3502 | 343.33 | 117.17 | 75 | 44.98 | 27449 | 2691.08 |
Please inquire your sales representative for output ,performance and EMC solution.
