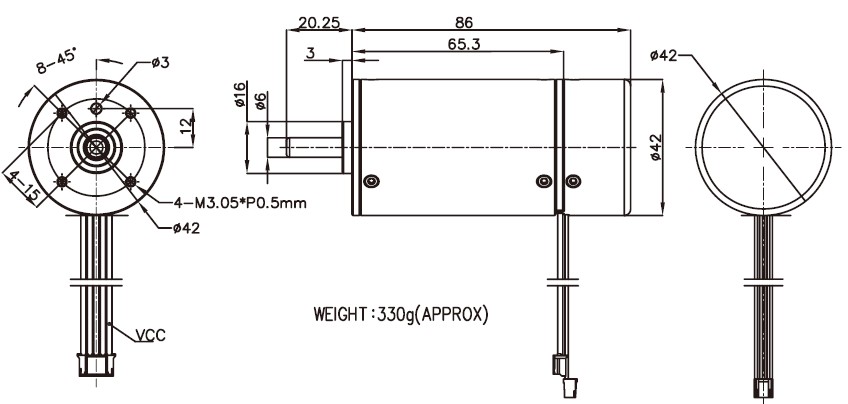

SV4286Servomotor /Round Type
Application： Portable Power Tool
SV4286SV4286SV4286SV4286SV4286
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| SV4286-24V | 9.0-25.2V | 24.0V CONSTANT | 3150 | 0.35 | 2446 | 0.648 | 370 | 37.7 | 9.28 | 68 | 1.256 | 855.3 | 87.27 |
Please inquire your sales representative for output ,performance and EMC solution.
