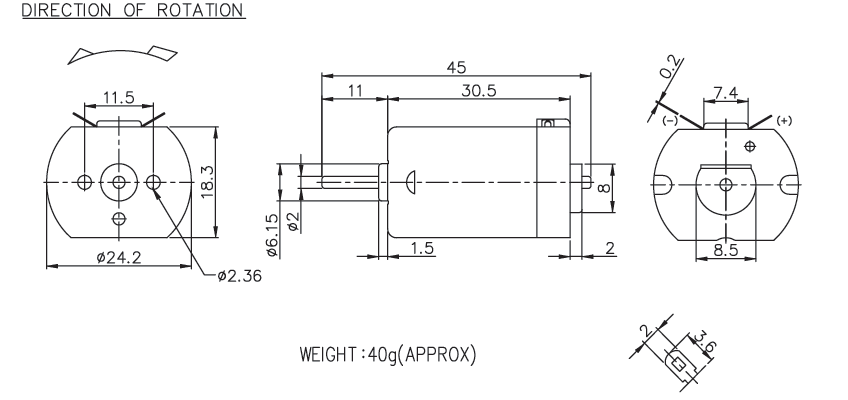

UC-280Brush DC Motor /Flat Type
Application： Central Lock
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

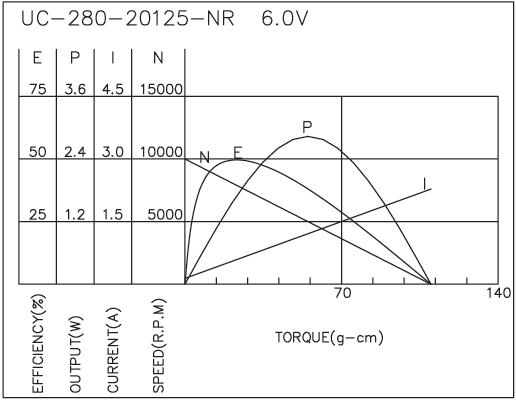

| UC-280-20125-NR | 3.0-9.0 | 6.0V CONSTANT | 10000 | 0.14 | 7600 | 0.52 | 19 | 1.86 | 1.51 | 49 | 2.28 | 110 | 10.78 |

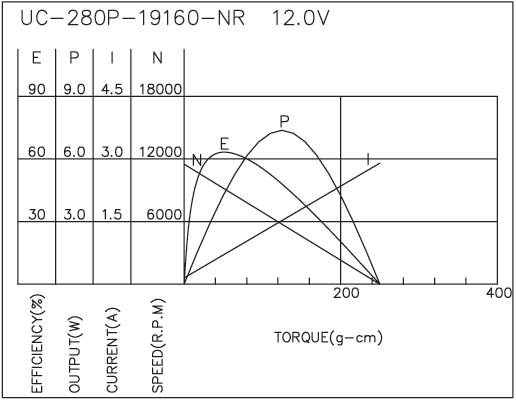

| UC-280P-19160-NR | 6.0-12.0 | 12.0V CONSTANT | 11500 | 0.15 | 9000 | 0.57 | 46 | 4.51 | 4.30 | 63 | 2.90 | 250 | 24.51 |

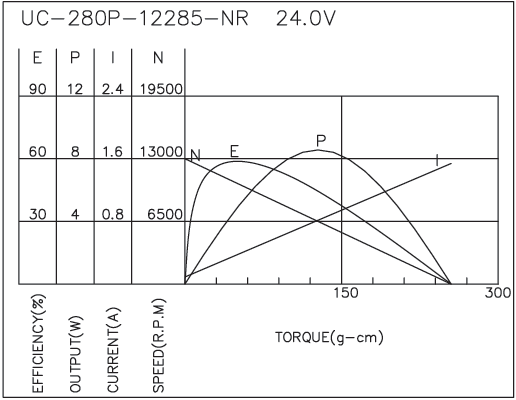

| UC-280P-12285-NR | 6.0-24.0 | 24.0V CONSTANT | 13000 | 0.09 | 10100 | 0.37 | 49 | 4.80 | 5.19 | 59 | 1.54 | 255 | 25.00 |

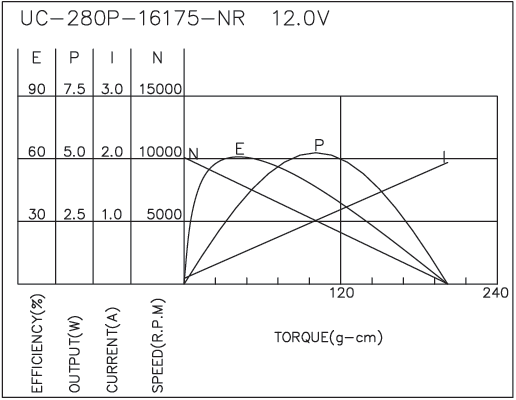

| UC-280P-16175-NR | 6.0-12.0 | 12.0V CONSTANT | 10100 | 0.09 | 8100 | 0.45 | 37 | 3.63 | 3.13 | 61 | 1.94 | 202 | 19.80 |
Please inquire your sales representative for output ,performance and EMC solution.
