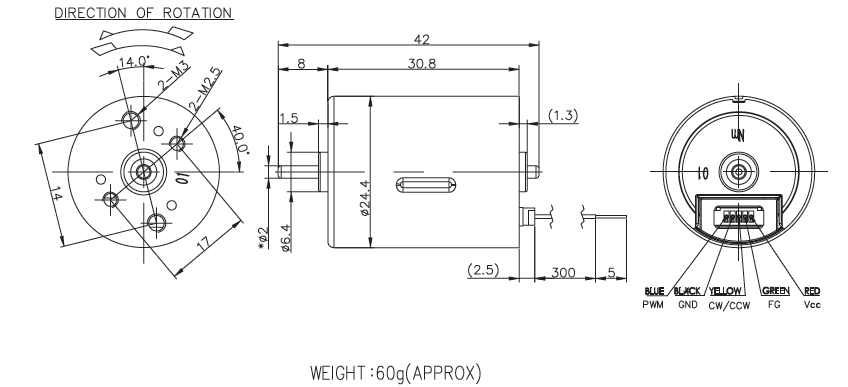

BL2430Brushless DC Motor /Round Type
Application： Portable Power Tool 、Robot Vacuum 、5G Antenna 、Smart Home
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| BL2430B-9V6.2K3W-C1Y0P | 9.0-16.0 | 9.0V CONSTANT | 6150 | 0.12 | 4990 | 0.48 | 52.6 | 5.20 | 2.70 | 64 | 2.0 | 280 | 27.5 |

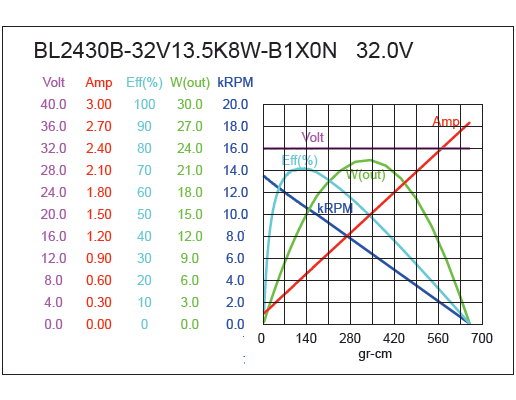

| BL2430B-32V13.5K8W-B1X0N | 9.0-34.0 | 32.0V CONSTANT | 13500 | 0.10 | 10930 | 0.60 | 123.0 | 12.10 | 13.80 | 72 | 2.8 | 660 | 67.4 |
Please inquire your sales representative for output ,performance and EMC solution.
