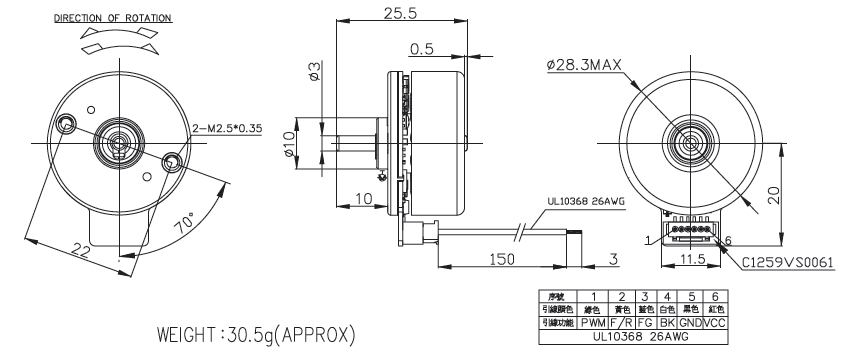

BL28E12BExternal Rotor Brushless DC Motor /Round Type
Application： Robot Vacuum 、Dental Flosser
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

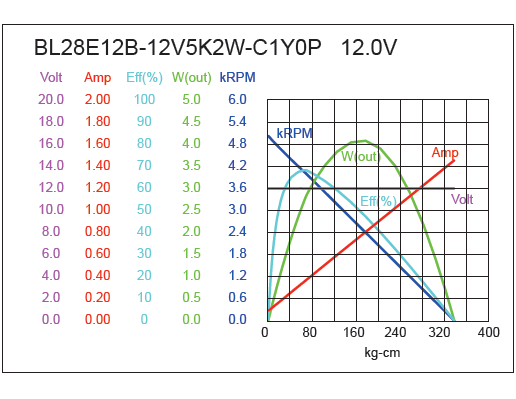

| BL28E12B-12V5K2W-C1Y0P | 12.0-16.8V | 12.0V CONSTANT | 5000 | 0.07 | 4068 | 0.35 | 64.51 | 6.30 | 2.70 | 68.7 | 1.46 | 338 | 33.10 |

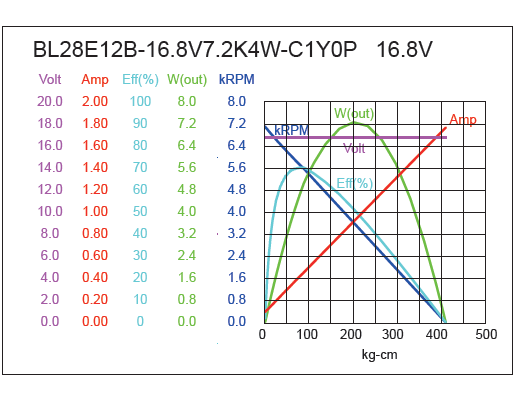

| BL28E12B-16.8V7.2K4W-C1Y0P | 12.0-16.8V | 16.8V CONSTANT | 7200 | 0.09 | 5695 | 0.43 | 81.77 | 8.00 | 4.80 | 70.9 | 1.77 | 411 | 40.30 |
Please inquire your sales representative for output ,performance and EMC solution.
