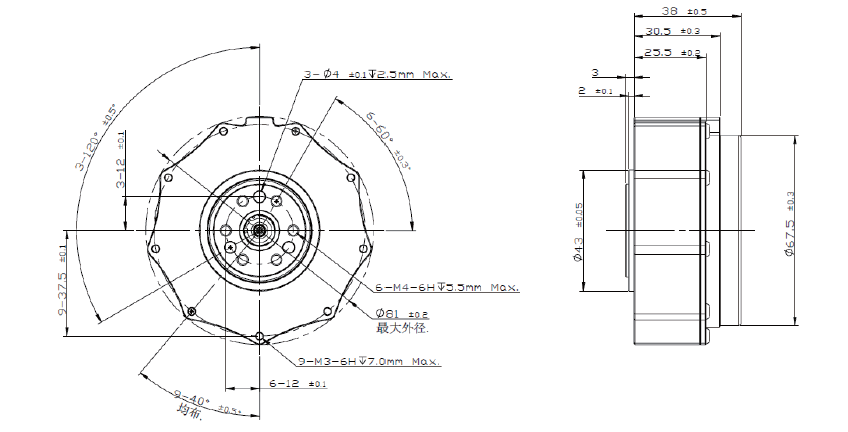

SV8138Servomotor /Round Type
Application： Pan-tilt-zoom (PTZ) Gimbal/ Turntable/ Toll Gate 、Robot Joints 、Patrol Robot

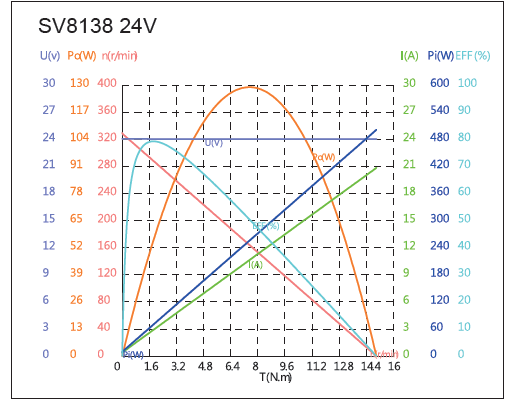

| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| SV8138 | 24.0V CONSTANT | 330 | 0.4 | 242±10% | 6.3±10% | 40800 | 4.00 | 100 | 71 | 20.8 | 153000 | 15 | |
Please inquire your sales representative for output ,performance and EMC solution.
